VEO CSMM3 Triple Directional Cold Shoe Mount

VEO CSMM3 Triple Directional Cold Shoe Mount

Item: VEO CSMM3

Delivery: FREE

$54.99 Buy It Now $59.99 Retail Price In Stock You Save 8% ($5.00)

Overview

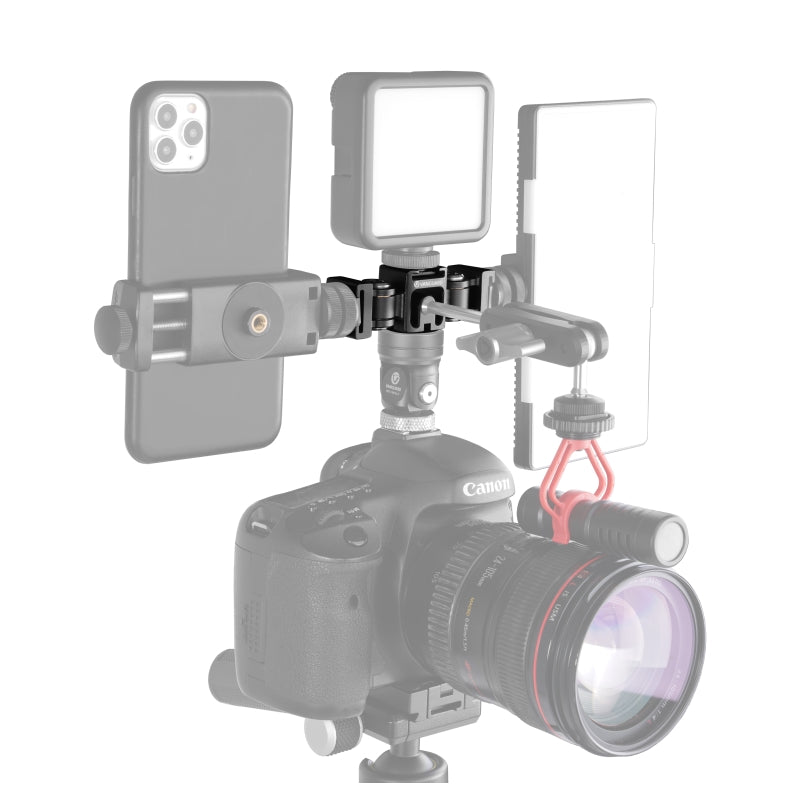

The VEO CSMM3 allows you to mount three accessories with a cold shoe mount base to a tripod support arm and adjust the angle of the side cold shoe mounts by +90° to -90°.

  • Fits any tripod support arm with 1/4" thread (VEO TSA DLX models with bayonet fittings recommended)
  • Fits camera hot shoe mount using a suitable cold shoe mount such as the VEO CSM or VEO CSM DLX
  • Attach three accessories with a cold shoe mount base onto the top plates
  • 1/4" thread hole on the front of the VEO CSMM3 is suitable for a Tripod Support Arm
  • Angle of the two side cold shoe mounts can be adjusted +90° to -90°
  • 3.5" wide (extended) x 0.9" tall
  • CNC-machined aluminium

Product Reviews:

$54.99 Buy It Now $59.99 Retail Price

The VEO CSMM3 allows you to mount three accessories with a cold shoe mount base to a tripod support arm, and adjust the angle of the side cold shoe mounts by +90° to -90°.

If your accessory base needs a 1/4" thread, or you want to attach this cold shoe multi-mount into the hot shoe mount on your camera, you can use the VEO CSM or VEO CSM DLX.

To attach to your tripod support arm, simply screw the 1/4" thread into the base of the VEO CSMM3. While it would take any 1/4" thread, to avoid the cold shoe mount unscrewing in use, we would recommend using a tripod support arm with a bayonet fitting, such as a VEO TSA DLX model.

To attach the it to your accessory, simply slot the accessory into the chosen cold shoe mount and tighten accordingly.

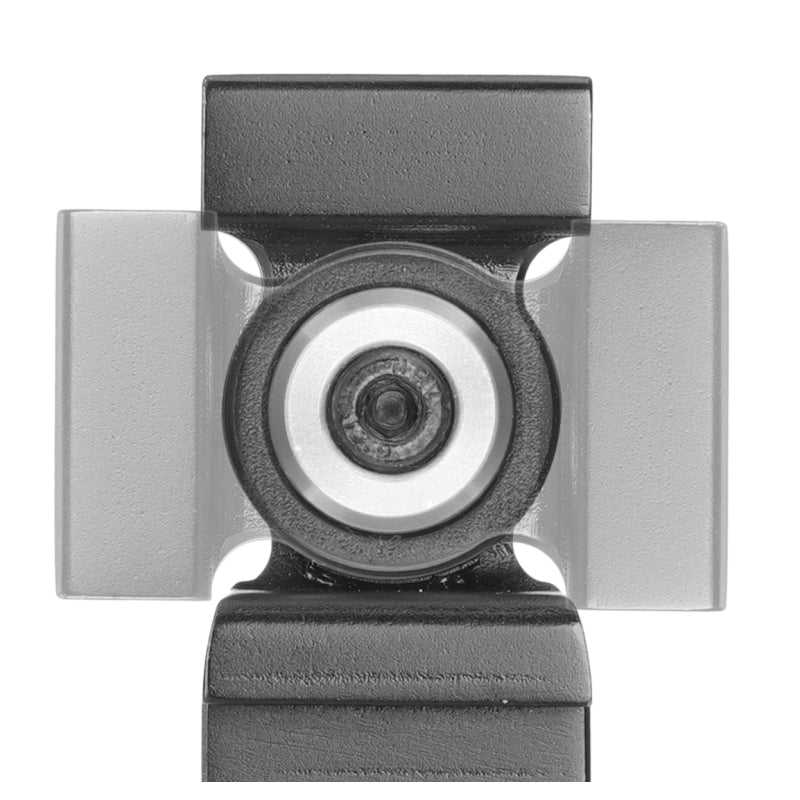

You can then adjust the angle of each side cold shoe mount by 180° (+90° to -90°) and you can lock the position in place using an Allen key.

On the front of the cold shoe mount is a 1/4" thread, allowing you to attach another suitable support arm, such as one of the Vanguard Tripod Support Arms, to add further accessories.

Folding to 2.4" wide (or a maximum of 3.5" wide), this triple cold shoe mount is more than just a solution for attaching accessories. If you want to consider alternative solutions, then check out the collection of VEO Cold Shoe Mounts.

Accessory 1/4" Thread Attachment Points 1 1
Accessory Cold Shoe Mount Attachment Points 3 3
Accessory Attachment Points 4 4
Adjustable? YES; Side cold shoe mounts move +90° to -90° YES; Side cold shoe mounts move +90° to -90°
Base Attachment 1/4" Thread 1/4" Thread
Color Black Black
Dimensions 3.5" wide (extended) x 0.9" tall 3.5" wide (extended) x 0.9" tall
Material Aluminum Aluminum
Maximum Load Capacity 4.4 lbs. 2 kg
Style Cold Shoe Mount Cold Shoe Mount
Item Weight 0.19 lbs. 86.2 g
